The WiFi Pineapple may be provisioned “headless” — meaning without intervention interactively. This means that you can take a fresh WiFi Pineapple (either Mark VII or Enterprise) out of its box and set it up with the latest firmware and your settings of choice without connecting it to a computer or smartphone.

WiFi Pineapple Enterprise

For USB Setup on the WiFi Pineapple Enterprise, please see this article:

{% embed url=“https://docs.hak5.org/wifi-pineapple-enterprise/setup/setup-by-usb-disk" %}

WiFi Pineapple Mark VII

For USB Setup on the WiFi Pineapple Mark VII, please continue below:

Preparing the USB drive

Once prepared, the USB drive will be properly formatted and contain a config.txt file, an upgrade-x.x.x.bin file, and optionally a device.config file (if using with Cloud C2).

Format the drive

The USB drive must contain only a single partition and be formatted as one of the following:

  • ext4
  • exFAT / FAT
  • NTFS

Download the firmware

Once your USB drive has been formatted with a supported filesystem, Download the upgrade file from the Hak5 Download Portal to the root of the USB drive.

Create the config.txt

On the root of the USB flash disk, create a config.txt file using a standard text editor such as Notepad (Windows), textEdit (Mac), or vim/nano (Linux) containing the below information. Make sure the txt file is saved in ASCII format. Modify the settings as per your desired configuration.

  #
#
ROOT_PASSWORD="hak5pineapple"
HOSTNAME="pineapple"
TIMEZONE="utc"
#
#
MANAGEMENT_SSID="Pineapple_Management"
MANAGEMENT_PSK="AGoodWPA-PSKPassphrase"
MANAGEMENT_HIDDEN=1
MANAGEMENT_DISABELD=0
OPEN_SSID="Open"
OPEN_HIDDEN=0
COUNTRY_CODE=US
#
#
CLIENT_FILTER="ALLOW"
SSID_FILTER="ALLOW"
#
#
ENABLE_C2=1
#
#
ACCEPT_LICENSE=TRUE

Add the Cloud C2 provisioning file (optional)

In addition to the config.txt and upgrade-x.x.x.bin files on the root of the USB drive, a Cloud C2 device.config provisioning file may be included.

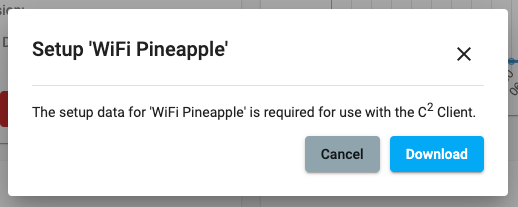

To generate this file, create a new WiFi Pineapple device on your Cloud C2 instance, then navigate to the device’s overview page and click the Setup button from the description card.

}}

Power on the WiFi Pineapple with the USB Drive

From a powered off state, place your USB drive into the USB Type-A port on the WiFi Pineapple, then connect it to a power source. Once the device is fully booted, it will automatically mount and find the upgrade file on the device. If the firmware file is valid, the device will then perform the firmware upgrade and reboot as indicated by the flashing red/blue LED.

Once the firmware has installed, you may connect to the WiFi Pineapple network and visit the web interface at http://172.16.42.1:1471.
