Extensions

Overview

It should be clear by now that so much is possible with DuckyScript 3.0. The combination of keystroke injection with various attack modes, logic and data processing, along with the built-in features like randomization and internal variables — the possibilities for advanced payload functions seems endless.
As the payload library continues to grow, so too will the DuckyScript 3.0 language. To that end, the extensions feature of the language and editor facilitate the continued growth of the language.
Extensions are blocks of reusable code which may be implemented in any payload. Think of them as snippets, or building blocks, upon which your next payload may benefit.
While Hak5 developers cannot envision all possible use cases for the USB Rubber Ducky, the DuckyScript language has been architected in such a way so that the community as a whole may gain new features and abilities with each contributed extension.
This section describes how to build, publish and use existing published extensions, as well as a summary of a few popular extensions.

Using Extensions

The code blocks within an extension are executed just like any other DuckyScript. The syntax is to wrap the block of code within the EXTENSION Name and END_EXTENSION commands (where Name is the name or title of the extension). Best practice is to include functions within the extension, which may be called as necessary.

How Extensions Work

Extensions begin with a special command, VERSION, which is used to indicate the version of an extension. This is useful because extensions may change over time. Payload Studio will automatically check the version of the used extension with the online extension repository. Within Payload Studio, a current extension will show an UP-TO-DATE tag while an old extension will show OUT-OF-DATE tag.
When using an extension that has been included in the USB Rubber Ducky repository, Payload Studio will show OFFICIAL tag. User created extensions which have not been included in the repository will show UNOFFICIAL tag. An official extension which has been modified will show a MODIFIED tag.

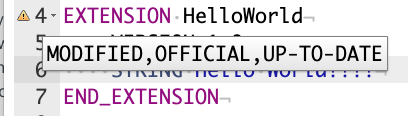

Payload Studio showing a modified, official, up-to-date extension.

Example

Typically extensions include functions which may be called by various payloads. With the below example, any payload including the ASCIIDUCK extension may call DUCK() to enjoy a quacking duck ASCII art.
EXTENSION ASCIIDUCK
VERSION 1.0
FUNCTION DUCK()
STRINGLN _
STRINGLN __(.)< QUACK!
STRINGLN \___)
END_FUNCTION
END_EXTENSION
STRING Let's run our first extension:
DUCK()

Result

  • The payload will type "Let's run our first extension:" followed by the Duck ASCII art.
Similar to payloads which may be contributed to the open source USB Rubber Ducky Payload repository via pull-request, extensions too may be added.

Featured Extensions

OS_DETECT

The OS_DETECT extension includes functions which will attempt to enumerate the target operating system using a variety of techniques including testing $_HOST_CONFIGURATION_REQUEST_COUNT and $_RECEIVED_HOST_LOCK_LED_REPLY.
The DETECT_OS() function will return to $_OS as WINDOWS, MACOS, LINUX, CHROMEOS, ANDROID or IOS.
EXTENSION OS_DETECT
VERSION 1.0
REM Collapsed for brevity
END_EXTENSION
DETECT_OS()
IF ($_OS == WINDOWS) THEN
STRING Hello Windows!
ELSE IF ($_OS == MACOS) THEN
STRING Hello Mac!
ELSE IF ($_OS == LINUX) THEN
STRING Hello Linux!
ELSE IF ($_OS == IOS) THEN
STRING Hello iOS!
ELSE IF ($_OS == CHROMEOS) THEN
STRING Hello ChromeOS!
ELSE IF ($_OS == ANDROID) THEN
STRING Hello Android!
ELSE
STRING Hello World!
END_IF

TRANSLATE

The TRANSLATE extension can type the values of variables. It includes the functions TRANSLATE_INT, TRANSLATE_HEX, and TRANSLATE_BOOL. Call these functions by first assigning the $INPUT variable.
VAR $FOO = 1337
$INPUT = $FOO
TRANSLATE_INT()
REM This will type the digits "1337".
$INPUT = $_CURRENT_VID
TRANSLATE_HEX()
REM This will type the HEX value of the current Vendor ID.
VAR $BAR = FALSE
$INPUT = $BAR
TRANSLATE_BOOL()
REM This will type "FALSE".
